The ST1000 high-performance compact road roller features precise parameters, flexible operation and reliable power, making it an ideal choice for municipal, road and garden construction scenarios. It has strong compaction ability, flexible maneuverability and excellent durability. Coupled with comprehensive after-sales service, it ensures trouble-free construction.

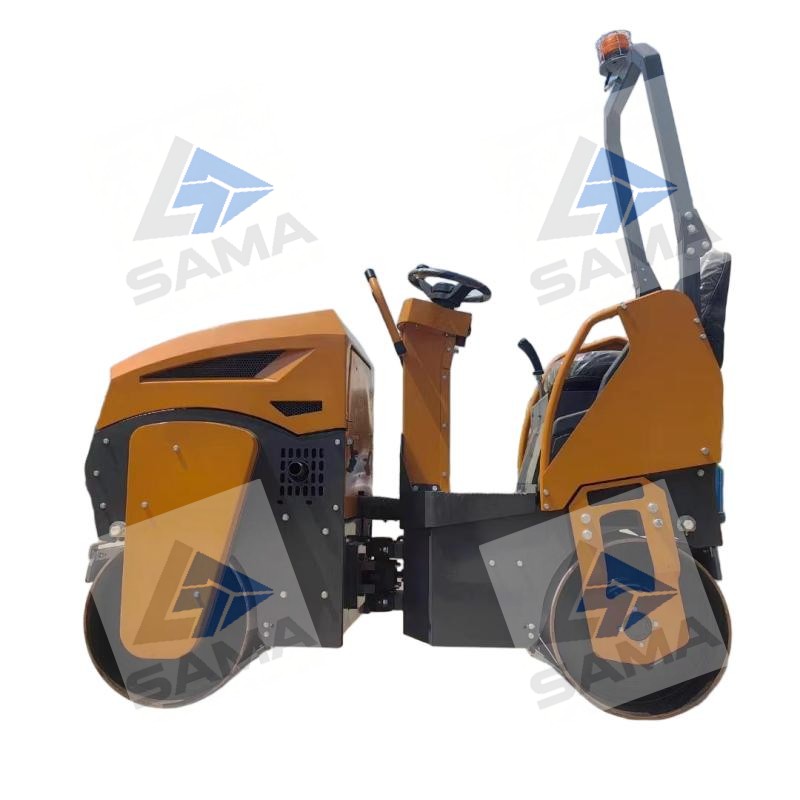

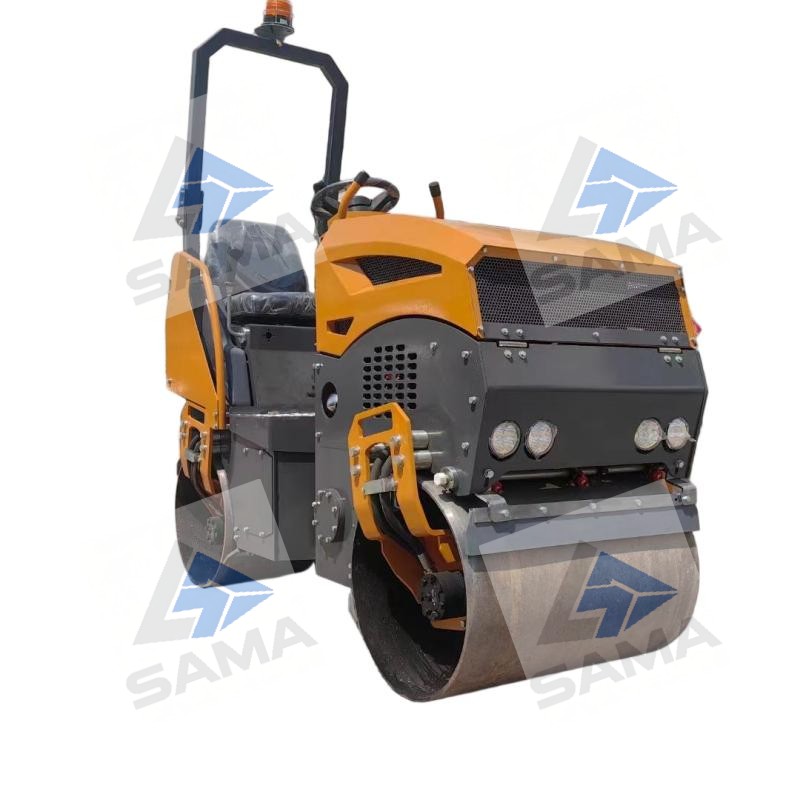

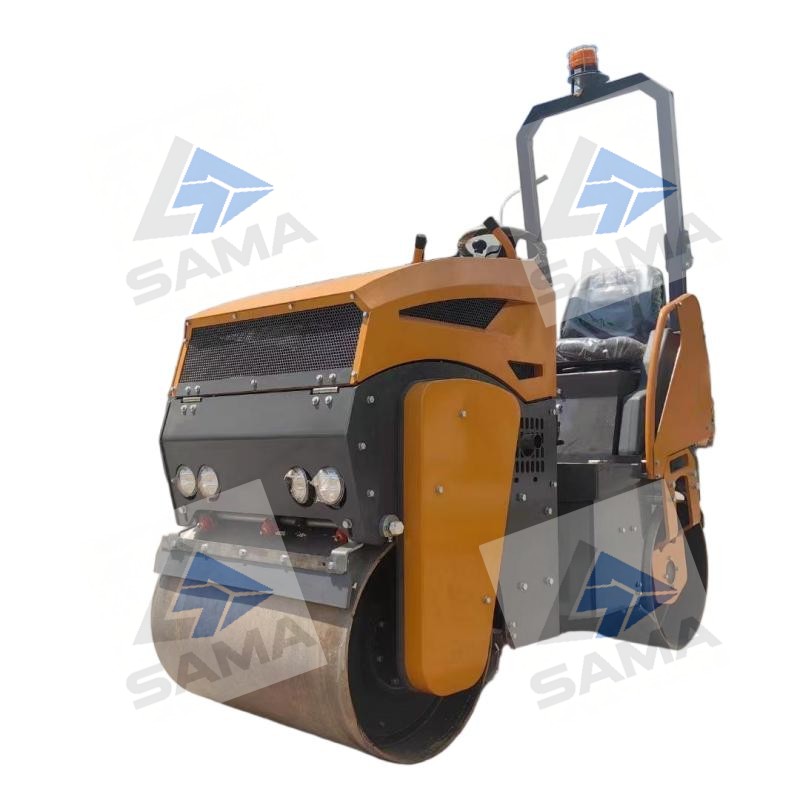

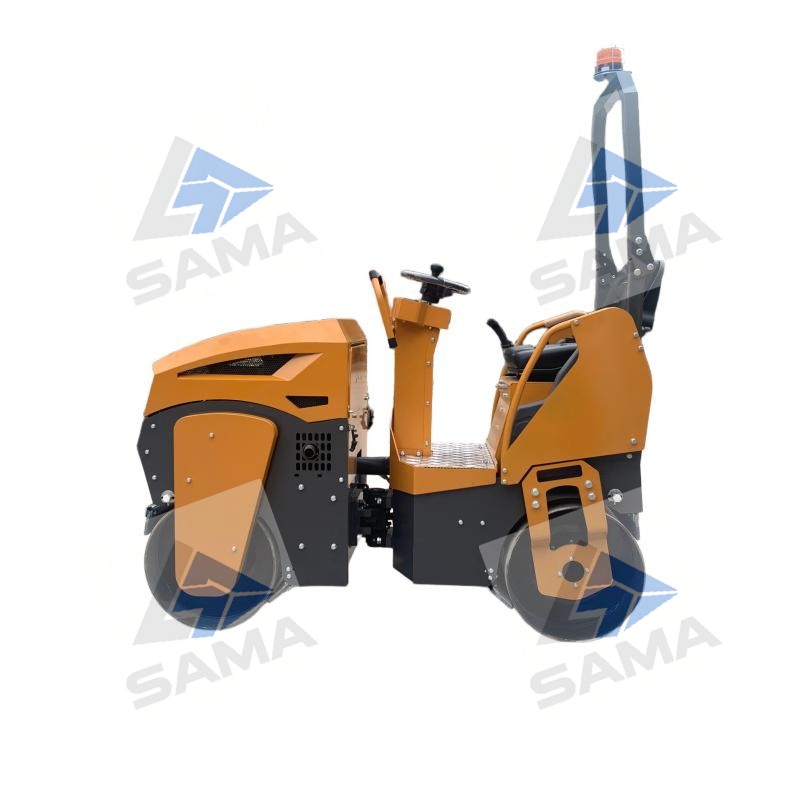

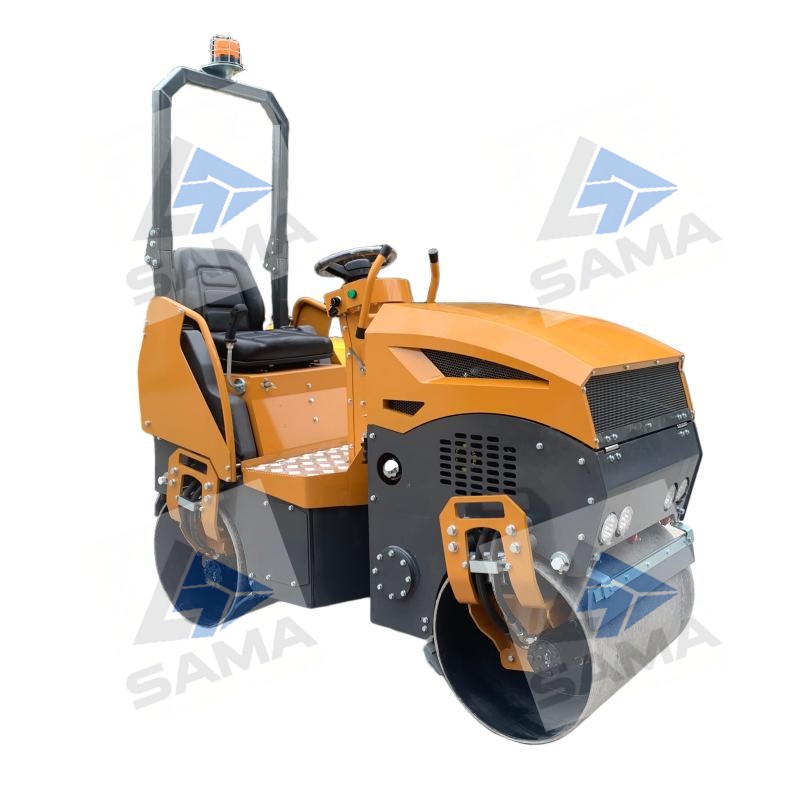

Details picture
Name	Steering system	Water tank	Seat	Motor

1.Power System

Two high-performance engines are available for selection, catering to different working conditions:

[1].HONDA Power: Equipped with the GX390 gasoline four-stroke single-cylinder engine, with an output power of up to 9.7KW and a rated speed of 3600rpm, suitable for continuous operation scenarios with high power requirements;

[2].CHANGFA/CHANGCHAI Power: Equipped with the 186F diesel four-stroke single-cylinder engine, with an output power of 6KW and a rated speed of 3600rpm, featuring economical fuel consumption and sufficient torque, suitable for long-term outdoor construction.

Both are equipped with a 12V electrical system, which is stable and easy to maintain.

[3].They are also paired with a 15L hydraulic fuel tank, a 6.5L fuel tank, and a 70L water tank, an intermittent spray anti-sticking cylinder, strong endurance, reducing the time for frequent refueling, and improving construction efficiency.

2.Drive & Control System

[1].The system adopts a variable plunger pump for stepless speed control with two wheels connected in series. The speed adjustment range is 0-6 km/h, allowing for precise control of the driving speed according to construction requirements.

[2].The theoretical climbing ability reaches 30%, enabling stable progress even on steep slopes, and it is suitable for complex terrains.

[3].The hydraulic steering is combined with a swing-hinged steering system, providing precise and flexible steering, significantly reducing the labor intensity of the operators, and allowing for easy turns even in narrow spaces.​

[4].The front wheel vibration drum (with a frequency of 70Hz, an amplitude of 0.5mm and an excitation force of 25KN) can quickly and efficiently compact various materials such as soil, sand, and asphalt. The compaction degree fully meets the engineering standards

3.Size
The equipment has been optimally designed to balance the coverage area and maneuverability:

[1].Operating weight: 1100kg;

[2].Static linear load: 56-77N/cm;

[3].The compressive strength is sufficient and uniform;

[4].Working width: 825mm; Combined with a 700mm-wide and 500mm-diameter vibrating drum, the total length is 1780-1870mm, the total height is 1450-1985mm, the turning radius is 2600mm.

It is small, flexible, and can easily handle complex construction environments.

The ST1000 compact roller, with its flexible design and powerful performance,is widely applicable in the following scenarios:

[1].Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;

[2].Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes

[3].Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;

[4].Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;

[5].Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

We provide wooden case packaging and strictly protect your machine’s body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder’s location.
