Product Description

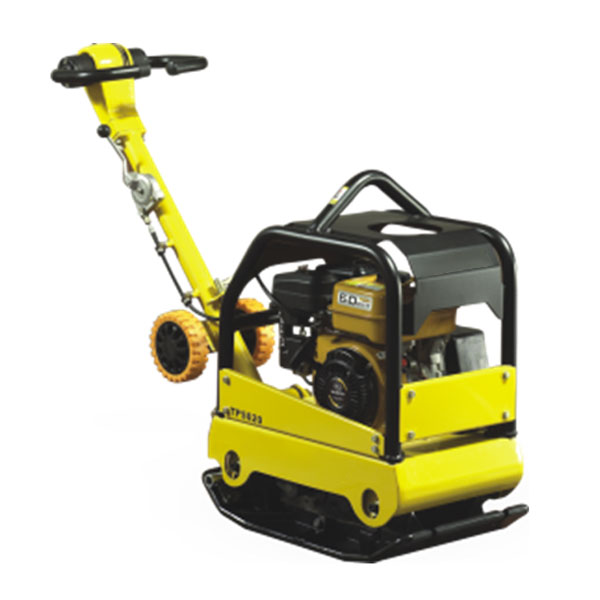

The Industrial Vibratory Plate Compactor is a high-performance engineering solution built for heavy-duty soil, gravel, and asphalt compaction. Boasting a superior 20kN centrifugal force and an operating weight of up to 145kg, this machine provides the deep-reaching impact necessary for stabilizing sub-bases in professional roadwork and industrial foundations.
Available with world-class power options including Honda GX160, Robin EY20, Briggs & Stratton, and Diesel engines, the TP5020 is designed for maximum uptime and reliability on the toughest job sites. The oversized 65x40cm ductile iron base plate ensures high efficiency, covering up to 22 meters per minute. Whether you are working on highway embankments, industrial floors, or deep utility trenches, this vibrating ground tamper delivers the structural integrity and compaction density required for long-term project success.
Technical Specifications
| Parameter / Model | TP5020-1 | TP5020-2 | TP5020-3 | TP5020-4 | TP5020-5 |
| Engine Type | Chinese Diesel 170 | Chinese Petrol | Robin EY20 | Honda GX160 | B&S I/C 1062 |
| Power kW (hp) | 3.1 (4.2) | 4.2 (5.7) | 3.7 (5.0) | 4.0 (5.5) | 3.6 (5.0) |
| Weight kg (lb) | 145 (320) | 135 (298) | 135 (298) | 135 (298) | 135 (298) |
| Centrifugal Force | 20 kN | 20 kN | 20 kN | 20 kN | 20 kN |
| Vibration Freq. | 5400 VPM (90Hz) | 5400 VPM | 5400 VPM | 5400 VPM | 5400 VPM |
| Travel Speed | 22 m/min (72) | 22 m/min (72) | 22 m/min (72) | 22 m/min (72) | 22 m/min (72) |
| Plate Size cm (in) | 65×40 (26×16) | 65×40 (26×16) | 65×40 (26×16) | 65×40 (26×16) | 65×40 (26×16) |
Applications
-
Deep Foundation Stabilization: Ideal for compacting thick layers of soil and sub-base materials before pouring concrete for industrial buildings.
-
Highway & Road Construction: Perfect for stabilizing road shoulders, embankments, and heavy-traffic asphalt sections.
-
Industrial Site Development: Used for leveling and compacting ground in factories, logistics centers, and large parking lots.
-
Utility & Municipal Projects: Highly effective for compacting backfill in wide trenches for water, gas, and electrical infrastructure.
-
Embankment & Slope Work: Capable of handling high-density compaction on inclines and sloped terrain.
Key Features
-
Massive 20kN Compaction Force: Provides elite-level vibratory energy to eliminate air pockets in cohesive and granular materials effectively.
-
Premium Engine Selection: Equipped with original Honda, Robin, or Diesel power for unmatched global reliability and parts availability.
-
Industrial Reinforced Chassis: The 145kg heavy-duty steel frame ensures maximum stability and downward pressure for deep compaction.
-
Advanced Shock Mount System: Outfitted with oversized rubber buffers to isolate the handle from high-frequency vibration, protecting the operator.
-
Ergonomic Foldable Handle: Designed for precise steering control and includes a folding mechanism for easy transport and storage.
-
Built-in Transport Wheels: Features a convenient heavy-duty wheel kit for effortless maneuvering around the job site by a single person.
-
Heavy-Duty Engine Guard: A reinforced steel cage protects the engine from site impacts and provides a central lifting eye for cranes.
