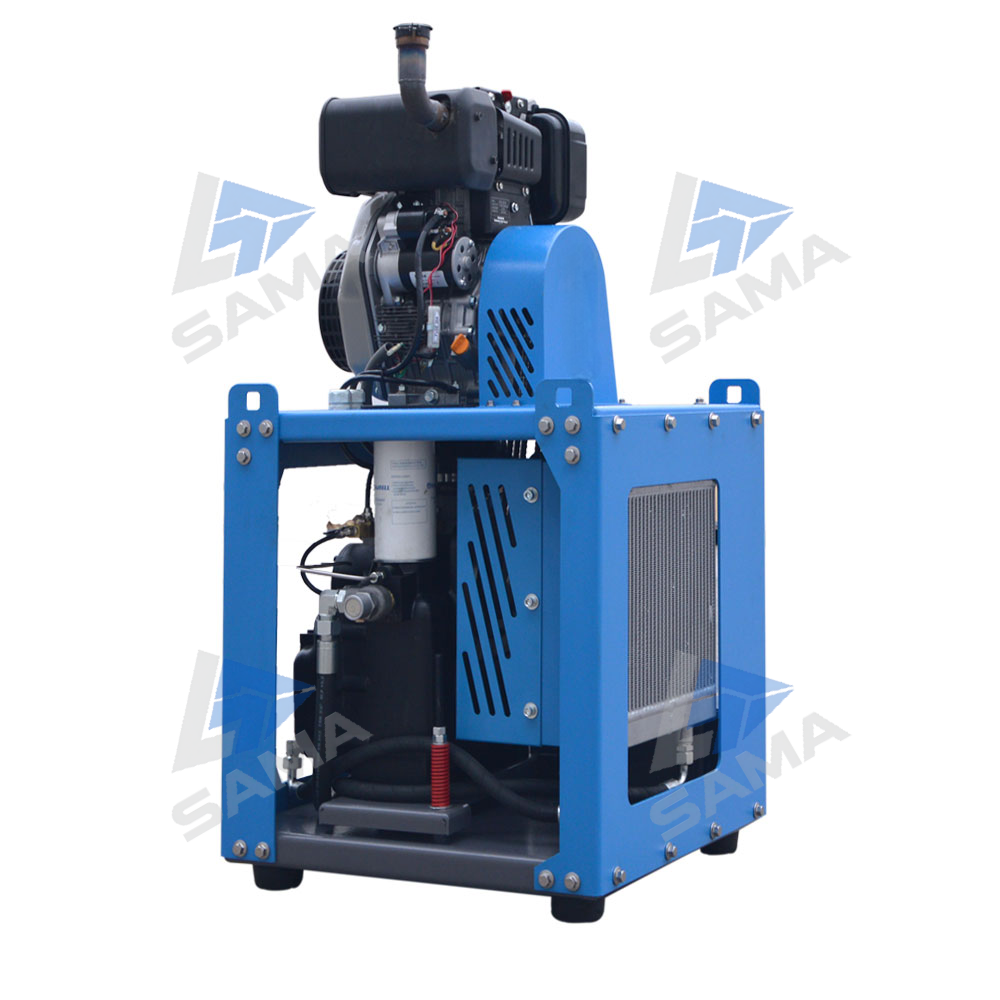

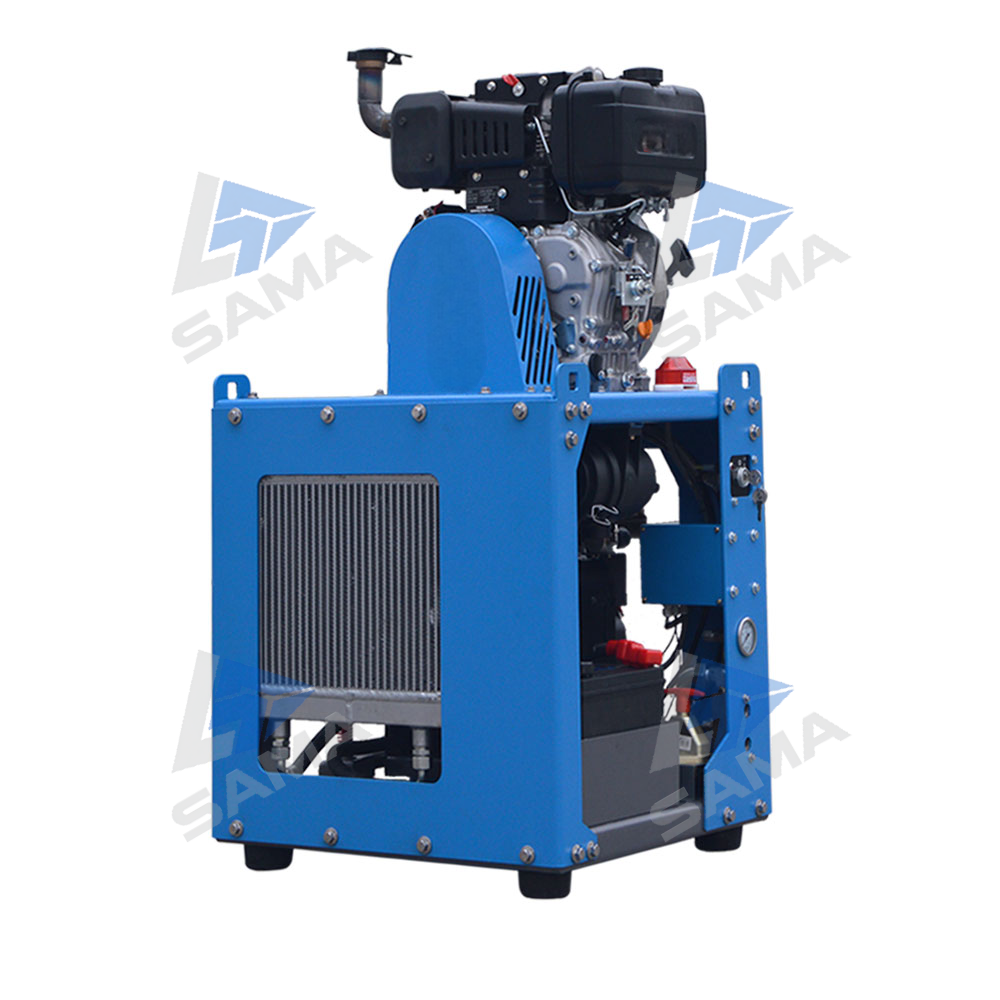

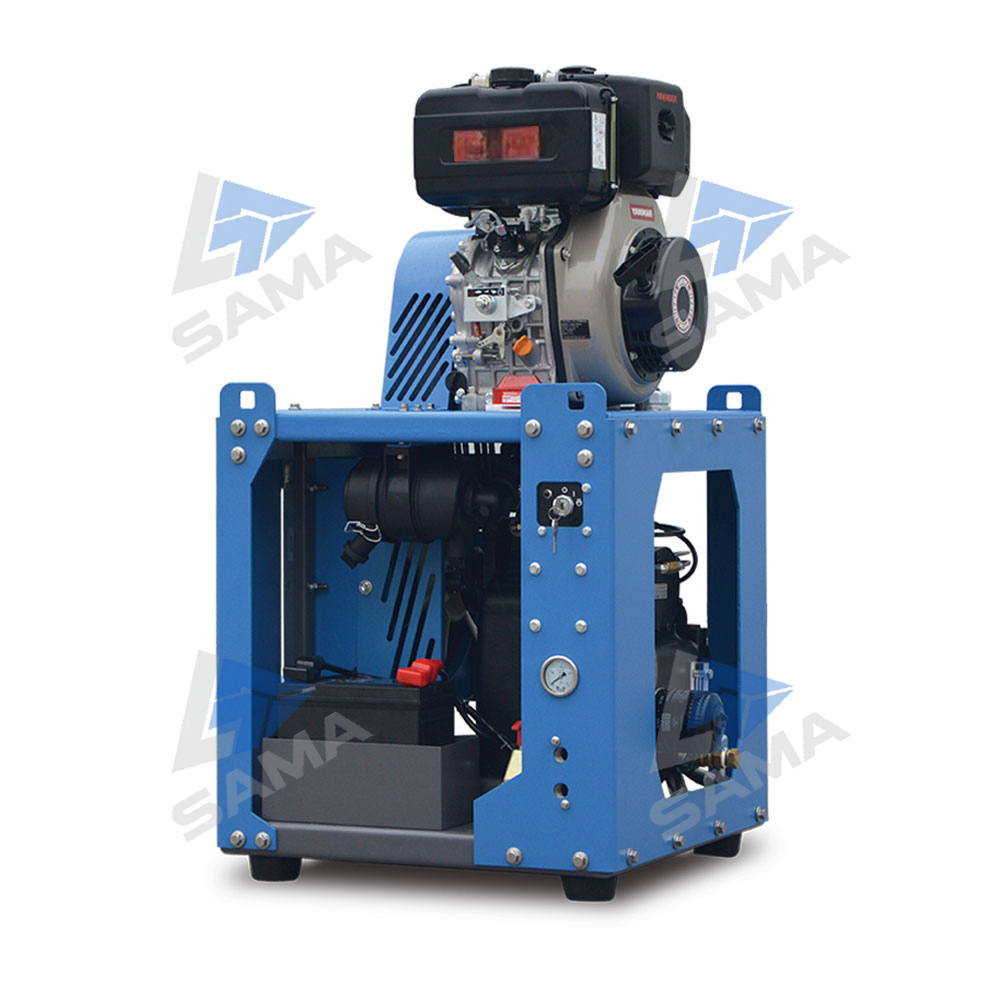

The 35 air compressor is powered with one 7.5kW/10hp petrol engine which can produce compressed air of 28-35 cfm @ 7-10 bar pressure.
35 diesel/gas driven air compressors are engineered and manufactured for mobile applicationExceptionally compact and lightweight model is available to provide 1.05 m°( 35 cfm) of quality compressedper minute at 7 bar( 100 psi). Moreover , in order to cover as wide a range of needs as possible, the WGD35is offered as a standard gas version , or as diesel version in horizontal or vertical structure. Operators can fitmore tools, equipment and supplies on trucks, without hassle.
What are the benefits of Diesel Air Compressor?
- ● Exceptional versatile: The compressor 35 offer incredible versatility for a wide range of applications. Suitable for use in ambient temperatures up to +45’C, it delivers the energy required to power reakers, air spades, pneumatic drills, saws.wrenches, grinders, impact borers.
- ● Diesel or petrol drive option: At the heart of the compressor lies one powerful air end which combine air end and oil air separator in one unit. A diesel or petrol engine provides the necessary power.
- ● User-friendly operation: The compressor is apparent in their user-friendly design. An easy to read panel with pressure gauge, and airend discharge temperature monitoring. Straightforward key start-up.
- ● Easy to transport: This compact compressor is able fit into the tightest of loading spaces. Lifting eye makes loading and unloading simple.
Compact and light weight design make it as the good choice for outdoor applications.
Two drive options
- Instead of a diesel engine, the 35 compressor can be also equiped with an petrol engine, making it alternative choice when it has requirements for exhaustinge mission.

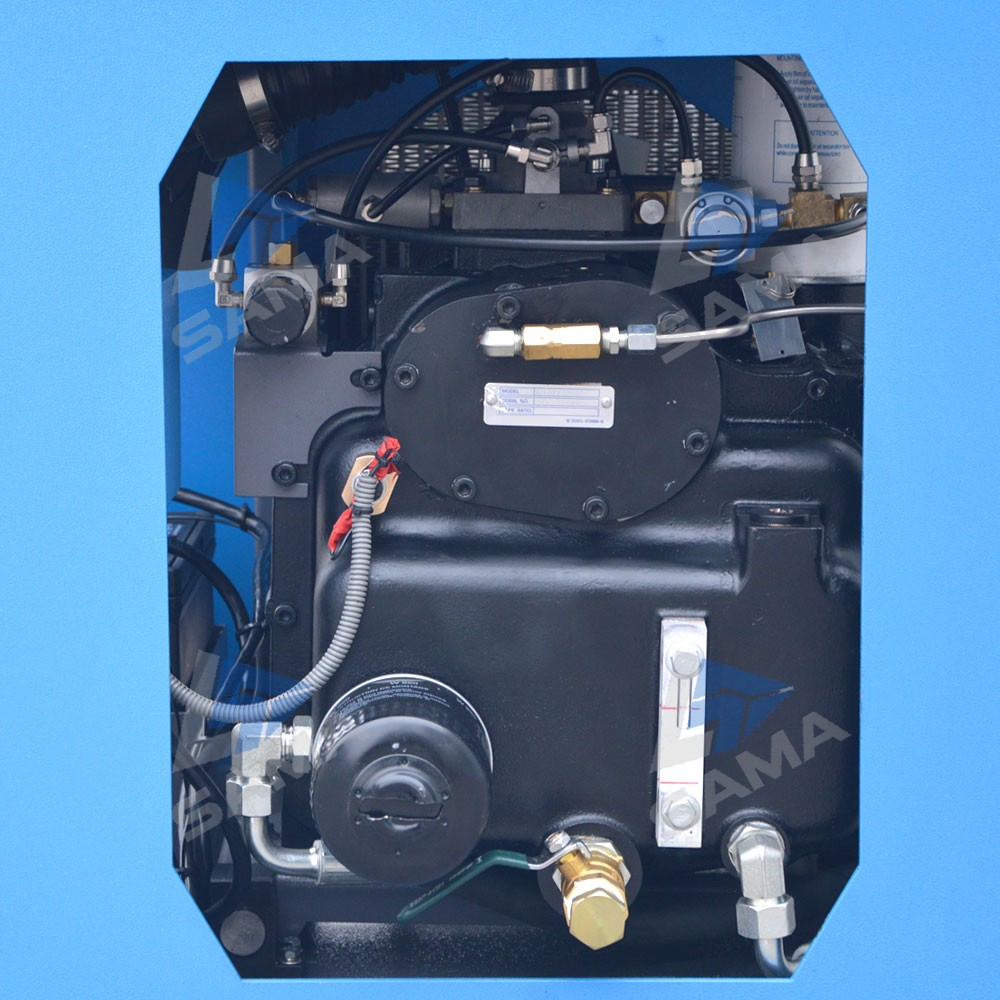

Integrated airend with separator
- Integrated airend with separator makes it more quiet compact and efficiency.
Easy opertion
- Pressure gauge and airend discharge temperature mornitoring is easy to read compressor working status.
Easy loading/unloading
- Compact and lightweight design make loading and unloading simple.
| Model No. |
Free Air Delivery (cfm) | Make | Engine Power |
Full Load Speed |
Off load Speed |
Fuel Tank Capacity |
Weight | Outlets | Dimension (mm) | |||||
| 100 | 116 | 145 | 174 | |||||||||||
| psi | psi | psi | psi | hp | rpm | rpm | L | kg | L | W | H | |||
| 35 | 35 | 28 | HONDA | 10 | 3600 | 5.5 | 270 | 2×1/2″ | 682 | 640 | 1184 | |||
Product Name: Gasoline Air Compressor / Portable Gasoline Air Compressor / Petrol Air Compressor
Product Description:
The Gasoline Air Compressor is a lightweight, portable, and cost-effective solution for generating compressed air in locations where electricity is unavailable or diesel power is impractical. Powered by a small gasoline (petrol) engine – typically single-cylinder, air-cooled, and from trusted brands like Honda, Subaru/Robin, Briggs & Stratton, Kohler, or Loncin – these units are designed for intermittent to moderate-duty applications in construction, agriculture, rental, landscaping, tire service, and home workshop environments.
Unlike diesel compressors which are heavier and more expensive, gasoline models offer lower upfront cost, simpler maintenance, quieter operation (in many cases), and easier starting in moderate climates. They are ideal for job sites, rural properties, remote cabins, emergency response vehicles, and anywhere else that needs portable pneumatic power without the weight and expense of diesel.
