Product Description

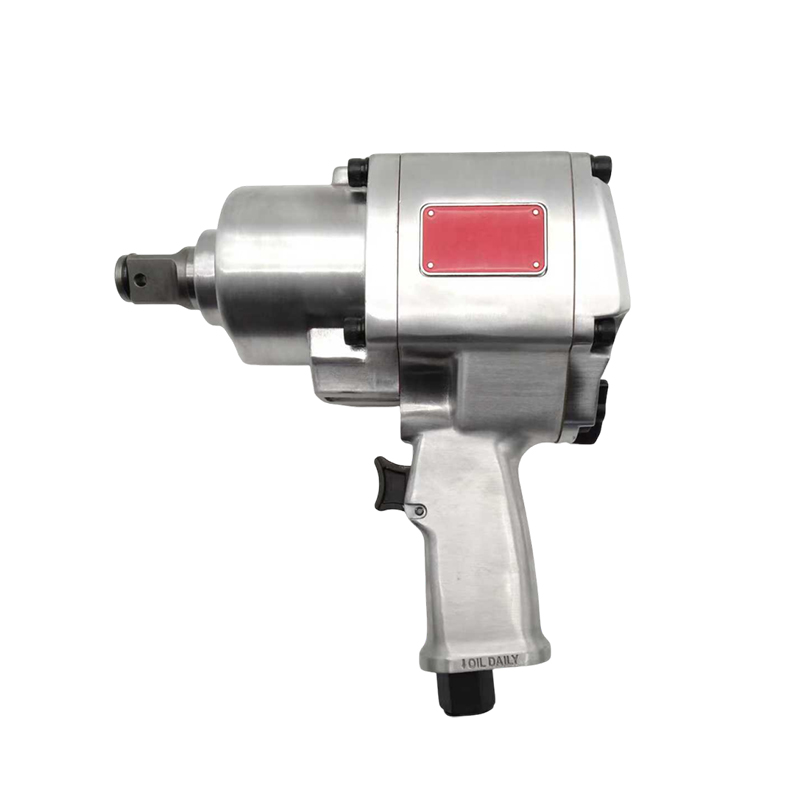

The AWR490D Professional Pistol-Grip Air Impact Wrench is engineered for industrial-grade performance in confined spaces. Despite its compact 240mm length, this heavy-duty pneumatic tool delivers a massive 2000 N.m (1540 ft-lb) of maximum torque, allowing mechanics to tackle high-tension bolts on trucks, buses, and heavy equipment with ease.
Built for versatility, the AWR490D supports both 3/4 inch and 1 inch square drives, providing the flexibility needed for various industrial socket sets. Driven by a high-efficiency air motor reaching 4300 RPM, it ensures rapid fastener removal while the reinforced aluminum alloy housing provides extreme durability against site impacts. With its balanced ergonomic design and multi-step power regulator, this tool is the definitive choice for professionals demanding high power-to-weight ratio in automotive workshops and industrial assembly lines.
Technical Parameters
| Parameter | Specification |
| Model | AWR490D |
| Square Drive | 3/4″ and 1″ (Dual Compatibility) |
| Capacity Bolt Size | 36 mm (1.40 inch) |
| Free Speed | 4300 r.p.m |
| Max Torque | 2000 N.m (1540 ft-lb) |
| Air Consumption | 220 L/min |
| Overall Length | 240 mm (9.40 inch) |
| Air Inlet (PT) | 1/2 inch |
| Air Hose (I.D.) | 1/2 inch |
| Net Weight | 8.0 kg (17.60 lbs) |
| Packing | 2 pcs/ctn (350×335×330mm) |
Applications
-
Commercial Fleet Repair: Perfect for lug nut removal and suspension work on medium-to-heavy trucks, buses, and trailers.
-
Industrial Mechanical Work: Ideal for assembling and maintaining large-scale machinery and industrial gearboxes.
-
Structural Steel Engineering: Used for securing heavy bolts in bridge building and steel frame construction.
-
Agriculture & Mining: Robust enough for onsite repairs of tractors, harvesters, and earthmoving equipment.
-
Shipbuilding & Marine: Reliable tool for large-scale fastener processing in maritime engineering.
Key Features
-
High Torque Performance (2000Nm): Delivers immense breaking force for fasteners up to 36mm, even when rusted or over-torqued.
-
Dual Square Drive System: Unique design allows for easy switching between 3/4″ and 1″ drives, maximizing tool utility across different job sites.
-
Ergonomic Pistol Grip: Features a comfortable, balanced handle with an oversized trigger for precise control and reduced hand fatigue.
-
Adjustable Power Settings: Integrated multi-stage forward and reverse torque regulator allows for precision tightening based on job requirements.
-
High-Speed Productivity: 4300 RPM free speed ensures quick operation, reducing labor time in high-volume environments.
-
Industrial Strength Internals: Reinforced twin-hammer mechanism ensures consistent, high-impact hits and extended tool life.
-
Durable Forged Body: The high-strength alloy casing is built to withstand the rigors of harsh professional workshop environments.
