Product Description

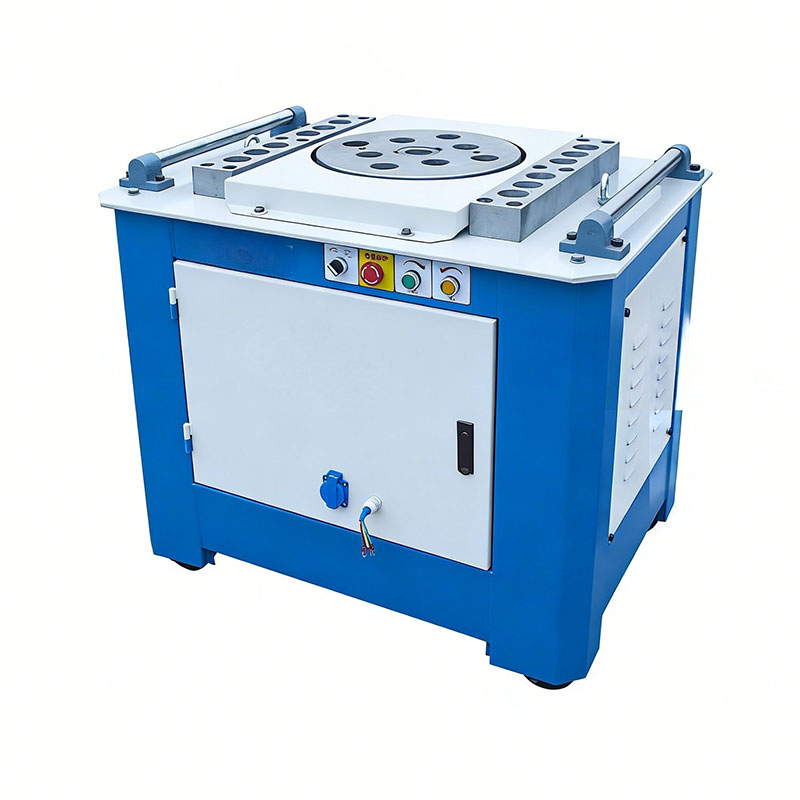

The BSR40 Professional Automatic Rebar Bender is an industrial powerhouse engineered for precision and high-speed productivity. Designed to handle the most demanding reinforcement tasks, this machine effortlessly bends steel bars ranging from 6mm up to 40mm in diameter. Driven by a robust 3Kw 4-pole motor, it offers dual-speed functionality (5R/min and 10R/min) to suit different material thicknesses and project requirements.
Featuring a fully automatic operating system, the BSR40 ensures consistent angles and high repeatability, significantly reducing manual labor while increasing onsite safety. Its massive 320kg reinforced steel chassis provides the vibration-free stability required for accurate heavy-duty bending. Equipped with a dual-voltage system (380V/220V) and high-strength alloy steel workheads, this machine is the definitive solution for contractors working on large-scale infrastructure, high-rise foundations, and industrial fabrication.
Technical Parameters
| Parameter | Specification |
| Model | BSR40 |
Bending Capacity (
MPa) |
6 mm – 40 mm |
Bending Capacity (
MPa) |
6 mm – 32 mm |
| Working Speed (High) | 10 R / Min |
| Working Speed (Low) | 5 R / Min |
| Input Voltage | 380V / 220V (Double/Switchable) |
| Power of Motor | 3 Kw – 4P |
| Operating Type | Fully Automatic |
| Net Weight | 320 Kg |
| Overall Dimension | 850 x 800 x 730 mm |
| Packing Size | 970 x 900 x 800 mm |
Key Features
-
Automatic High-Precision Control: Designed for effortless operation with a foot-switch or control panel, ensuring perfect bending angles every time.
-
Industrial 3Kw Copper Motor: Features a high-torque 4-pole motor built for continuous heavy operation and superior thermal management.
-
Massive 40mm Bending Capacity: Reinforced internal gearing and heavy-duty turntable designed to bend high-tensile steel bars used in mega-structures.
-
Dual Working Speeds: Allows for “High Speed” for thinner bars to increase productivity and “Low Speed” for maximum torque when bending thick rebar.
-
Ultra-Stable 320kg Chassis: The heavy-duty cast and forged body eliminates machine “walking” or vibration, extending the lifespan of the mechanical parts.
-
Dual-Voltage Support: Compatible with both 220V and 380V industrial power standards for maximum job-site flexibility.
-
Premium Hardened Steel Components: Equipped with high-wear resistant pins and bushes to withstand the friction of industrial-grade steel bending.
Applications
-
Bridge & Dam Construction: Essential for creating precise reinforcement cages for bridge piers and dam foundations.
-
High-Rise Building Sites: The primary tool for onsite processing of rebar for large structural columns and foundation mats.
-
Precast Concrete Plants: Ideal for high-speed automated fabrication of reinforced concrete beams and industrial slabs.
-
Railway & Infrastructure: Used for processing heavy steel grids for tunnels, high-speed rail tracks, and airport runways.
-
Steel Fabrication Yards: Provides a centralized, heavy-duty station for mass production of custom-bent steel rods.
