Product Description

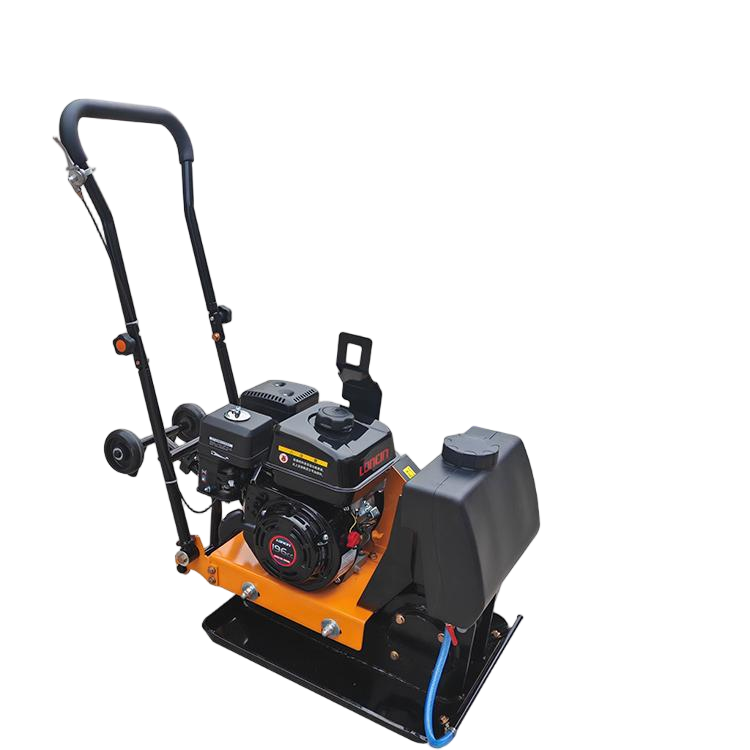

Dominate your most challenging compaction projects with the Professional PC-100 Series Industrial Vibratory Plate Compactor. Engineered for elite performance and high-density stabilization, this heavy-duty machine delivers a staggering 20kN of centrifugal force—one of the highest in its class. Driven by a high-torque 6.5HP industrial engine, it effectively reaches a compaction depth and frequency that ensures a rock-solid, structurally sound foundation for any large-scale infrastructure or paving task.
The PC-100 is a dual-purpose powerhouse. Featuring an integrated large-capacity water tank and a gravity-fed sprinkling system, it is the definitive tool for hot-mix asphalt paving, preventing adhesion while providing superior dust suppression. Built for the modern contractor, it includes a vibration-isolated handle to protect the operator and a built-in heavy-duty transport wheel kit, allowing a single person to maneuver the 80kg unit effortlessly across the job site. With its oversized 420*520mm ductile iron base plate, this compactor provides the raw power, speed, and durability required for professional roadwork, foundations, and commercial landscaping.
Applications
-
National Road & Highway Repair: Ideal for high-density asphalt patching, road shoulder maintenance, and street widening.
-
Commercial Foundation Prep: Perfect for compacting thick sub-bases of gravel, sand, and mixed soils before pouring concrete for warehouses or office buildings.
-
Utility & Trenching Work: Specifically designed for compacting backfill in wide utility trenches and around pipeline installations.
-
Industrial Landscaping: The primary tool for leveling and stabilizing ground for large-scale public squares, sports tracks, and synthetic turf sub-bases.
-
Paving & Hardscaping: Essential for settling large interlocking pavers and heavy stone slabs into bedding sand for high-traffic pedestrian zones.
Key Features
-
Elite 20kN High-Impact Force: Delivers extreme vibratory energy reaching deep into sub-grade materials to eliminate air pockets in fewer passes.
-
Integrated Asphalt Sprinkling System: Large water tank prevents hot-mix asphalt from sticking to the plate, ensuring a mirror-smooth surface finish.
-
Professional 6.5HP Engine: High-output 4-stroke petrol engine with an easy-start recoil system, built for 24/7 industrial job-site reliability.
-
Heavy-Duty Ductile Iron Base Plate: Forged with wear-resistant materials and self-cleaning curved edges for smooth maneuvering and a ridge-free finish.
-
Superior Hand-Arm Vibration Isolation: Outfitted with professional-grade shock mounts to minimize vibration transfer, significantly reducing operator fatigue during long shifts.
-
One-Man Mobility Kit: Includes a convenient fold-down transport wheel system for effortless movement across job sites without extra help.
-
Reinforced Protective Frame: A rugged steel engine cage protects vital components from impacts and serves as a secure central lifting point for cranes.
Technical Parameters
| Parameter | Specification |
| Model | PC-100 |
| Engine Type | Petrol / Diesel (High-Torque) |
| Engine Power | 6.5 hp (196cc / 212cc) |
| Centrifugal Force | 20 KN (20,000 Newtons) |
| Vibration Frequency | 48 Hz |
| Base Plate Size | 420 * 520 mm |
| Forward Speed | 4 – 20 m/min |
| Machine Weight | 80 kg |
| Packing Size (LWH) | 920 * 480 * 700 mm |
