Product Description

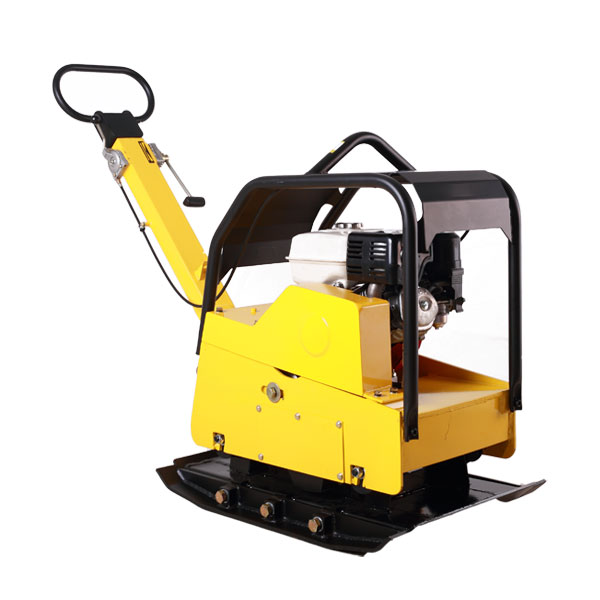

The Reversible Vibratory Plate Compactor is an elite engineering tool built for high-density soil stabilization and deep-reach compaction. Engineered with a powerful reversible hydraulic system, this machine allows the operator to switch between forward and backward movement effortlessly, making it the ultimate solution for compacting narrow trenches, foundations, and high-volume job sites.
Boasting a superior 38kN centrifugal force, the MS330 delivers intense vibratory energy that reaches an incredible compaction depth of up to 90cm (34 inches). Available with world-class power options including the Honda GX270 (9HP) and Chinese Diesel 186 (9HP), this machine is constructed with a reinforced 89x67cm ductile iron base plate to withstand the most punishing industrial environments. Whether you are prepping highway sub-bases, stabilizing industrial foundations, or backfilling deep utility lines, the MS330 provides the crushing power and maneuverability required by top-tier professional contractors.
Technical Specifications
| Model | MS330-1 | MS330-2 | MS330-3 | MS330-4 |
| Engine Type | Chinese Diesel 186 | Chinese Petrol | Petrol, Robin EX27 | Petrol, Honda GX270 |
| Power kW(hp) | 6.6 (9.0) | 6.6 (9.0) | 6.6 (9.0) | 6.6 (9.0) |
| Operation Mass kg(lbs) | 355 (795) | 321 (719) | 317 (710) | 321 (719) |
| Frequency VPM | 3750 | 3750 | 3750 | 3750 |
| Centrifugal Force kN | 38 | 38 | 38 | 38 |
| Compaction Depth cm(in) | 90 (34) | 90 (34) | 90 (34) | 90 (34) |
| Travel Speed cm/s | 0 – 35 | 0 – 35 | 0 – 35 | 0 – 35 |
| Efficiency m²/hr | 650 | 650 | 650 | 650 |
| Plate Size cm(in) | 89×67 (35×26) | 89×67 (35×26) | 89×67 (35×26) | 89×67 (35×26) |
| Dimension cm | 178x67x90 | 178x67x90 | 178x67x90 | 178x67x90 |
Features
-
Two-Way Reversible Operation: Seamlessly switches between forward and reverse travel, ideal for onsite compaction in restricted areas or dead-end trenches.
-
Extreme 38kN Impact Force: Specifically engineered to reach high-density compaction in cohesive and granular soils at depths standard compactors cannot reach.
-
9HP Industrial Engines: Equipped with high-torque Honda GX270 or Diesel 186 engines for reliable cold starting and consistent power under maximum load.
-
Reinforced Ductile Iron Base: Features a heavy-duty, self-cleaning base plate with a 89x67cm footprint for maximum coverage and structural longevity.
-
Advanced Shock-Mount System: Heavy-duty rubber buffers reduce vibration transfer to the handle and upper motor frame, protecting both the operator and the engine.
-
Centralized Lifting Hook: Includes a reinforced steel cage with a central lifting point for easy crane or hoist transport on construction sites.
-
Precision Control Lever: Ergonomically placed throttle and direction controls ensure pinpoint accuracy during maneuvering.
Applications
-
Road & Highway Sub-base: Ideal for stabilizing sub-grade layers before asphalt paving or concrete pouring.
-
Industrial Foundation Prep: Perfect for compacting thick layers of soil for factories, high-rise building slabs, and warehouses.
-
Deep Trench Backfilling: Specifically designed for large utility trenches, sewer lines, and electrical conduits.
-
Retaining Walls & Bridge Abutments: Provides the necessary force to ensure structural integrity in critical load-bearing areas.
-
Parking Lot Construction: High-efficiency coverage for stabilizing large commercial parking areas and industrial freight yards.
