Product Description

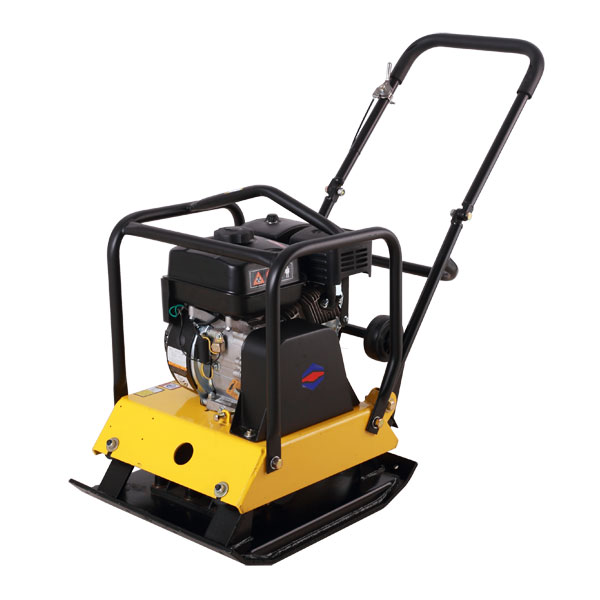

The Vibratory Plate Compactor is a high-performance industrial solution engineered for superior soil stabilization and asphalt finishing. This versatile machine—widely known as a “Wacker Plate”—is designed to bridge the gap between manual tamping and heavy rollers, delivering a potent 13-15KN centrifugal force to eliminate air pockets and ensure a rock-solid foundation.
Equipped with premium engine options including Honda GX160, Robin EX17/EY20, and Briggs & Stratton, this compactor reaches a compaction depth of up to 32cm (13 inches). Its robust 57x44cm ductile iron base plate and a high-frequency vibration of 5600 VPM allow it to cover up to 660 m²/hr, significantly boosting job site productivity. Whether you are prepping a sub-base for a driveway, repairing municipal roads, or compacting utility trenches, the MS series provides the industrial-grade durability and precision required by professional contractors globally.
Applications
-
Asphalt Paving & Patching: Ideal for repairing potholes, finishing road shoulders, and compacting asphalt in parking lots or driveways.
-
Foundation & Sub-base Work: Essential for stabilizing sand, gravel, and mixed soils before pouring concrete for residential or industrial buildings.
-
Utility & Trenching: Specifically designed for compacting backfill in narrow utility trenches and around pipeline installations.
-
Landscaping & Retaining Walls: Perfect for leveling and stabilizing ground for patios, garden paths, and stone wall foundations.
-
Brick & Paver Installation: Used with a protective mat (optional) to settle interlocking pavers and bricks into the bedding sand.
Features
-
Multiple Premium Engine Options: Available with world-class Honda, Robin, and B&S engines for unmatched reliability and global service availability.
-
High Centrifugal Force (15KN): Delivers intense vibratory energy reaching deep into the sub-grade for high-density compaction in fewer passes.
-
Professional Ductile Iron Base: Features a heavy-duty, wear-resistant base plate with curved edges for effortless maneuvering and a smooth surface finish.
-
High Efficiency & Speed: Capable of travel speeds up to 40 cm/s and an efficiency rate of 660 m²/hr for rapid project completion.
-
Advanced Vibration-Isolated Handle: Outfitted with a professional-grade shock mount system that isolates the operator from hand-arm vibrations, reducing fatigue.
-
Heavy-Duty Protective Frame: A solid engine cage protects core components from job-site impacts and provides a secure central lifting point for transport.
-
Self-Cleaning Open Base: Designed to prevent the buildup of dirt, sand, and rocks, ensuring the machine stays balanced and efficient throughout the work shift.
| Parameter / Model | MS80-1 / MS95-1 | MS80-2 / MS95-2 | MS80-3 / MS95-3 | MS80-3Y / MS95-3Y | MS80-4 / MS95-4 | MS80-5 / MS95-5 |
| Engine Type | Chinese Diesel 170 | Chinese Petrol 170 | Petrol, Robin EX17 | Petrol, Robin EY20 | Petrol, Honda GX160 | B&S I/C 1062 |
| Engine Detail | – | – | Air-cooled, 4-cycle, | Single cylinder | – | – |
| Power kW (HP) | 3.1 (4.2) | 4.8 (6.5) | 4.2 (5.7) | 3.7 (5.0) | 4.0 (5.5) | 3.7 (5.0) |
| Operation Mass kg (lbs) | 88(194) / 103(227) | 78(172) / 95(210) | 78(172) / 95(210) | 78(172) / 95(210) | 78(172) / 95(210) | 78(172) / 95(210) |
| Frequency (VPM) | 5600 | 5600 | 5600 | 5600 | 5600 | 5600 |
| Centrifugal Force (kN) | 13 / 15 | 13 / 15 | 13 / 15 | 13 / 15 | 13 / 15 | 13 / 15 |
| Compaction Depth cm(in) | 30(12) / 32(13) | 30(12) / 32(13) | 30(12) / 32(13) | 30(12) / 32(13) | 30(12) / 32(13) | 30(12) / 32(13) |
| Travel Speed cm/s(in/s) | 40 (16) | 40 (16) | 40 (16) | 40 (16) | 40 (16) | 40 (16) |
| Efficiency m²/hr (ft²/hr) | 660 (7100) | 660 (7100) | 660 (7100) | 660 (7100) | 660 (7100) | 660 (7100) |
| Plate Size cm (in) | 57×44 (22×17) | 57×44 (22×17) | 57×44 (22×17) | 57×44 (22×17) | 57×44 (22×17) | 57×44 (22×17) |
| Dimensions cm (in) | 96x44x95 (38x17x37) | 96x44x95 (38x17x37) | 96x44x95 (38x17x37) | 96x44x95 (38x17x37) | 96x44x95 (38x17x37) | 96x44x95 (38x17x37) |
