FEATURES
[1].Equipped with imported power, quality assurance
[2].Excellent performance.
[3].Equipped with LED energy-saving lights, high luminous flux, and energy-saving efficiency
[4].High-performance motor, one-button electric lifting
[5].5 lifting poles, galvanized light poles, anti-drop, and corrosion-resistant.
[6].Five windproof support legs provide stable support
[7].Integrated operation panel with rain cover
[8].Lift the height by 7 meters and adjust the irradiation angle, long exposure distance
[9].Large capacity fuel tank, long battery life
Product Parameter
| Model | S-4EVA4000 | ||
| Engine brand | Changchai | ||
| Engine mode | 186F | ||
| Engine type | Single cylinder air cooling | ||
| Power | kw | 6 | |
| Frequency | hz | 50/60 | |
| Rotating speed | rpm | 3000/3600 | |
| Emission level | TIER 4 | ||
| Alternator | Brushless and single-phase | ||
| Generator insulation | H CLASS | ||
| Rated voltage | V | 230 /240-120 VAC | |
| Output jack | 1(230V,10A) | ||
| Continuous working time | h | 25 | |
| Fuel tank capacity | L | 38 | |
| Headlights | Metal Halide | LED Lamp | |
| Lamps power x quantity | W | 1000×4 | 400*4 |
| Luminous flux | lm | 440000 | 224000 |
| Irradiation distance | M | 100 | |
| Stabilize the leg | Manual adjustment | ||
| Light pole telescopic | Vertical lift | ||
| Lifting method | Electric lifting | ||
| Light Stand Operation | Five-section lifting rod | ||
| Sound pressure | 78dB(A)at 7 meters away | ||
| Wind resistance | level | <8 | |
| Suspension & brakes | Hexagonal rubber shaft without brake | ||
| Length | mm | 2180(1160 Detaching the tow bar) | |
| Width | mm | 1130 | |
| Height | mm | 2700(2300 Separate a pair of ceiling lights) | |
| Lift height | m | 7 | |
| Tire and rim size | “ | 13 | |
| Weight | kg | 550 | |
| Product Details |

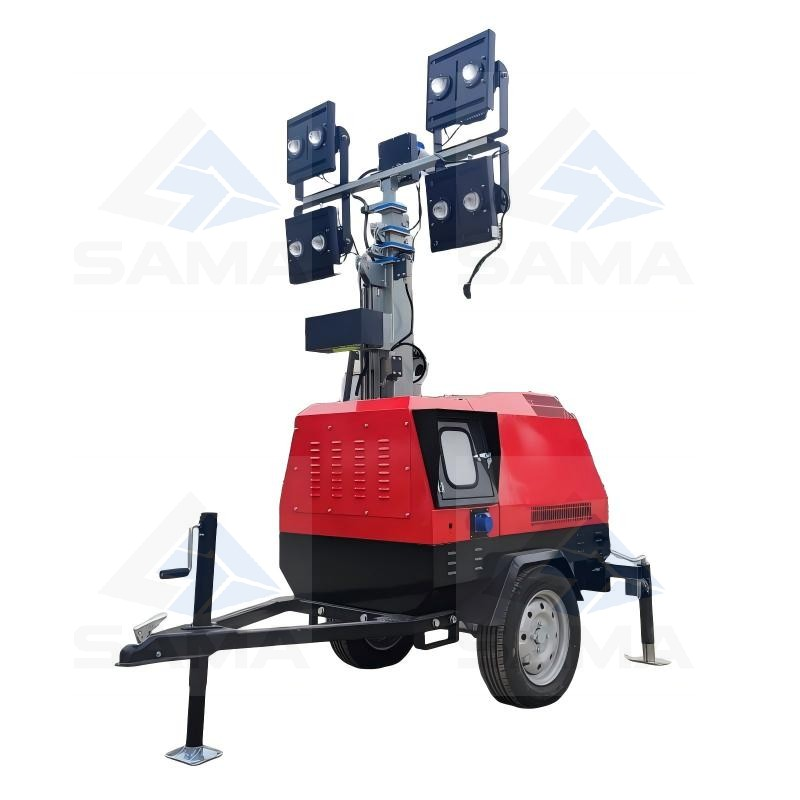

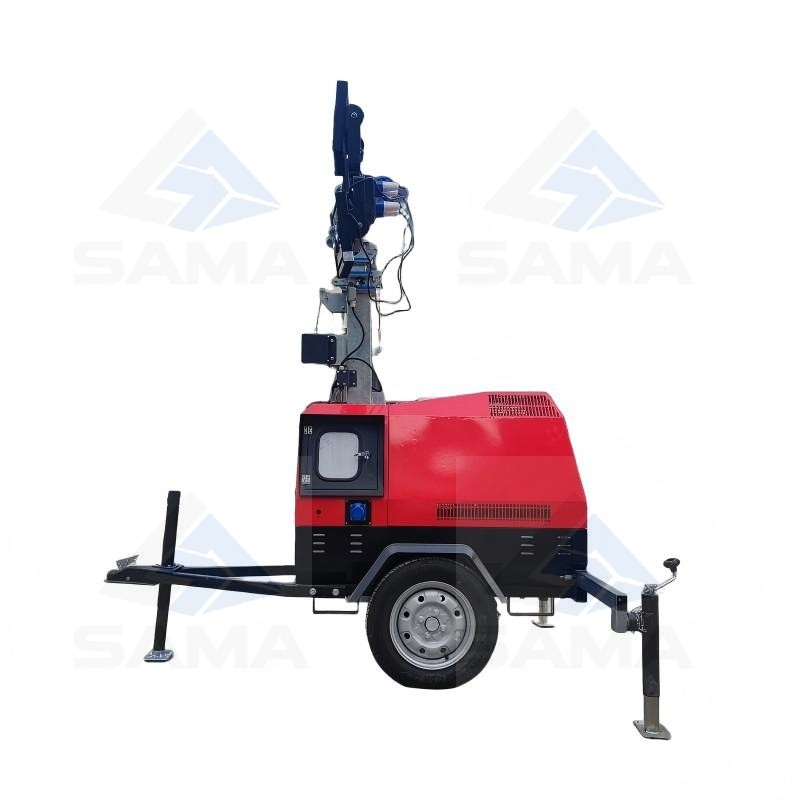

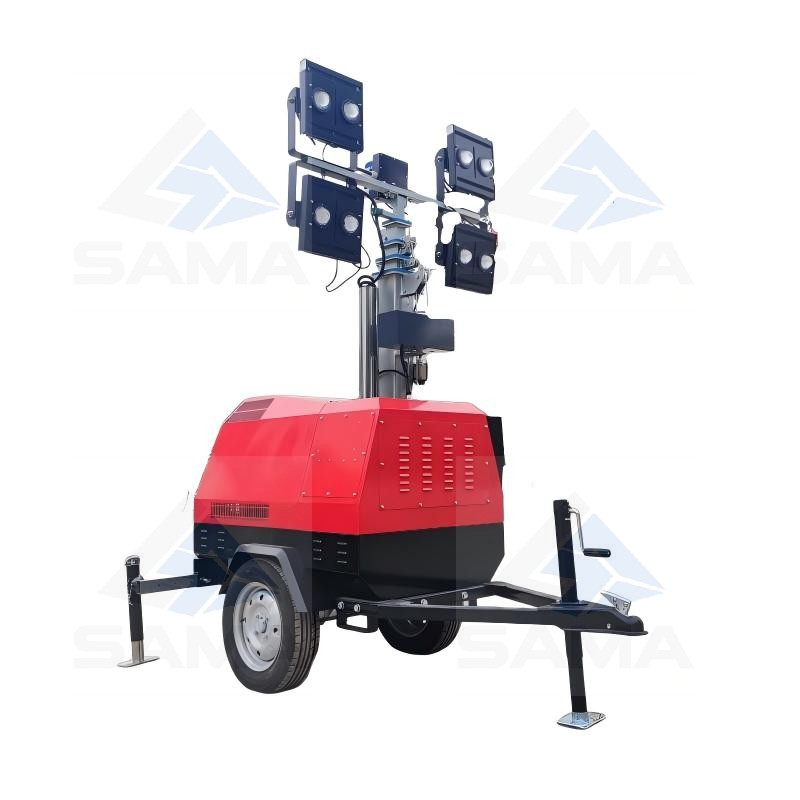

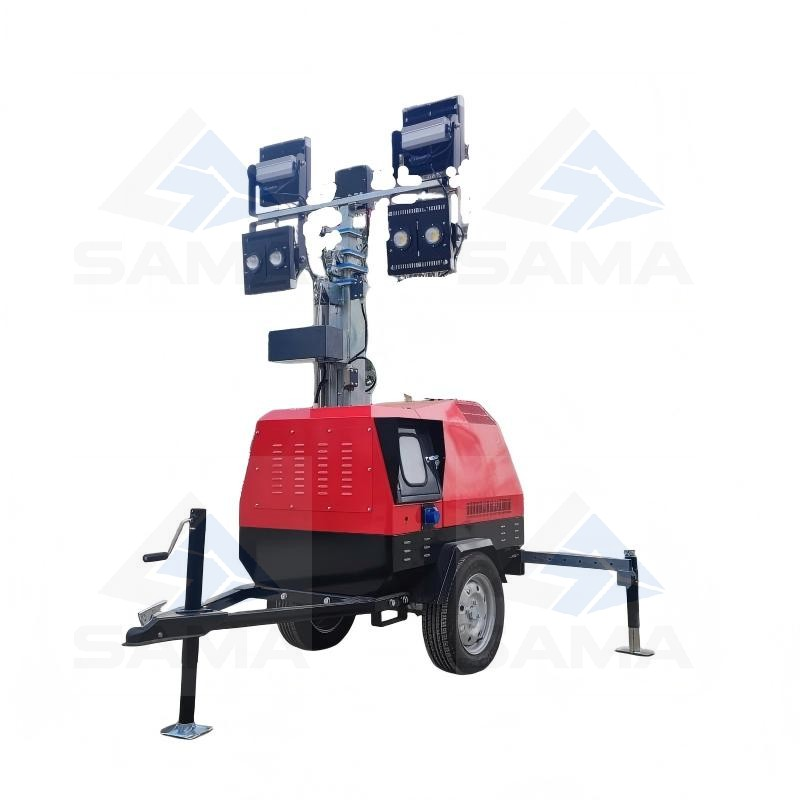

The mobile lighting tower, with its stable power system, flexible operation design, reasonable size layout and wide range of applicable scenarios, has become an ideal lighting solution for outdoor operations, emergency rescue and other scenarios.
| Details picture |  |
 |
 |
 |
| Name | LED light | LED panel light | Generator set | Walking wheels |
1. Power system
[1].The equipment is equipped with the Changchai 186F engine, featuring a single-cylinder air-cooled design. Its rated power can reach 6kw, which can fully meet the power requirements for lighting and the equipment’s own operation.
[2].The engine complies with the TIER 4 emission standards, being environmentally friendly and energy-saving, effectively reducing the environmental impact of outdoor operations.
[3].The power system is flexible in adaptation, with frequencies selectable at 50/60Hz and rotational speeds at 3000/3600rpm, suitable for different scenarios’ power demands.
[4].The fuel tank capacity is 38L, with outstanding endurance. The continuous working time can reach 25 hours, eliminating the need for frequent fuel refueling, significantly enhancing the efficiency of outdoor operations.
[5].The equipment operates with low noise, with a sound pressure of only 78dB(A) at a distance of 7 meters, reducing noise interference to the working environment and surrounding areas.
2.Drive & Control System
[1].The equipment is equipped with manually adjustable stabilizing legs, with wind resistance up to level 8 or below. It can adapt to various complex outdoor environments.

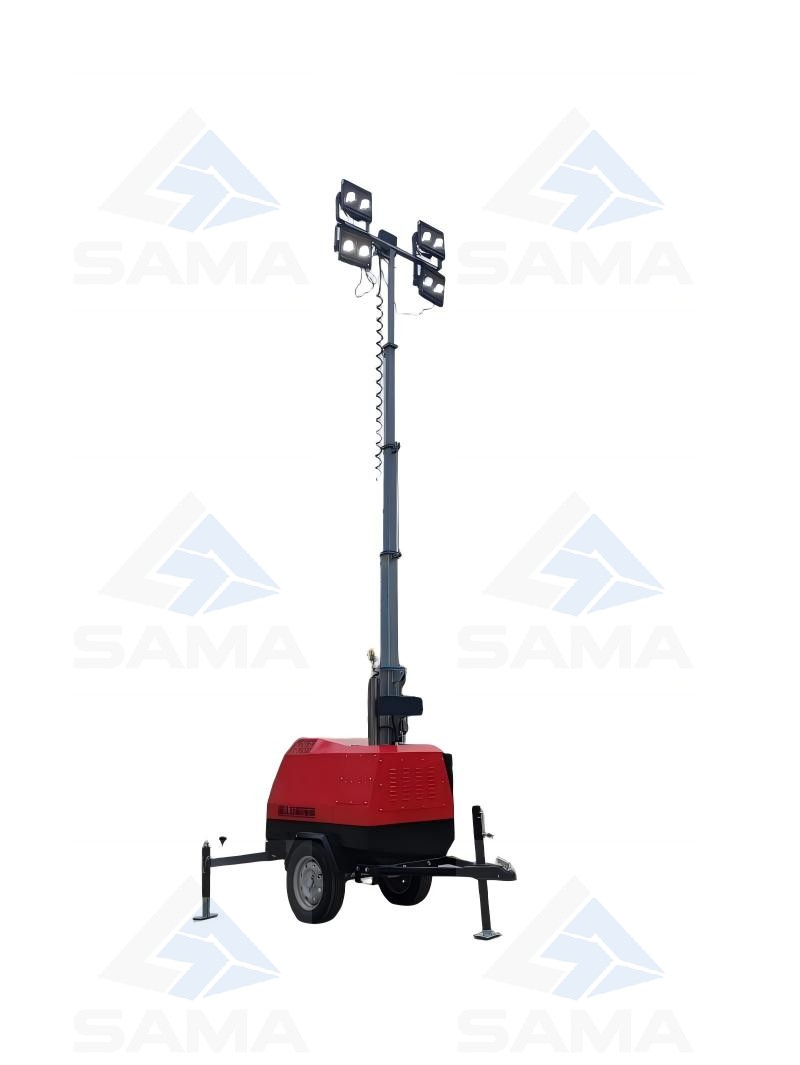

[2].The lamp pole adopts a five-section lifting pole design, supporting vertical and electric lifting methods. The operation is convenient and efficient, with a maximum lifting height of 7 meters, meeting the lighting requirements of different working scenarios.
[3].The lighting system offers two configuration options, both capable of achieving a long-distance illumination of 100 meters.
[4].The lighting is bright and the coverage is extensive:
①Each metal halide lamp has a power of 1000W, with a total of 4 lamps, and the total luminous flux reaches 440,000 lm;
②Each LED lamp has a power of 400W, with a total of 4 lamps, and the total luminous flux reaches 224,000 lm.
| Real scene display image |
[5]The equipment adopts a hexagonal rubber shaft without braking design, which is convenient to move and is suitable for flexible outdoor transportation needs; it is also equipped with a 230V, 10A output interface, making it more practical.
3. Size
[1].Size: The length is 2180mm (1160mm after removing the towing rod), the width is 1130mm, and the height is 2700mm (2300mm after separating the pair of ceiling lights). It is convenient for outdoor transportation and storage.
[2].The equipment is equipped with 13-inch tires and rims, with excellent load-bearing performance. It is suitable for various complex outdoor road conditions and is flexible and convenient to move.
[3].The total weight of the equipment is 550kg, which not only ensures operational stability but also facilitates hoisting and transportation, reducing operational costs.
| Application |
The mobile lighting tower is suitable for a wide range of scenarios. With stable power output, strong lighting performance, and flexible mobility, it can meet the usage requirements in various fields.
[1].In the construction industry, it applies to night operation scenarios such as road construction, bridge building, and mining, providing large areas of bright lighting to ensure construction safety and efficiency.
[2].In the emergency rescue field, it can be used for night rescue and emergency operations in disaster sites such as earthquakes, floods, and fires, providing clear vision for rescue personnel and saving rescue time.
[3].In the outdoor activity field, it is suitable for large-scale events, outdoor performances, and camping assembly scenarios, meeting the temporary lighting needs.
[4].It can also be applied in municipal maintenance, power emergency repair, and night operation of agricultural planting bases, covering all aspects of outdoor temporary lighting and long-term operation lighting needs.
| Packing and shipping |
We provide wooden case packaging and strictly protect your machine’s body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder’s location.
