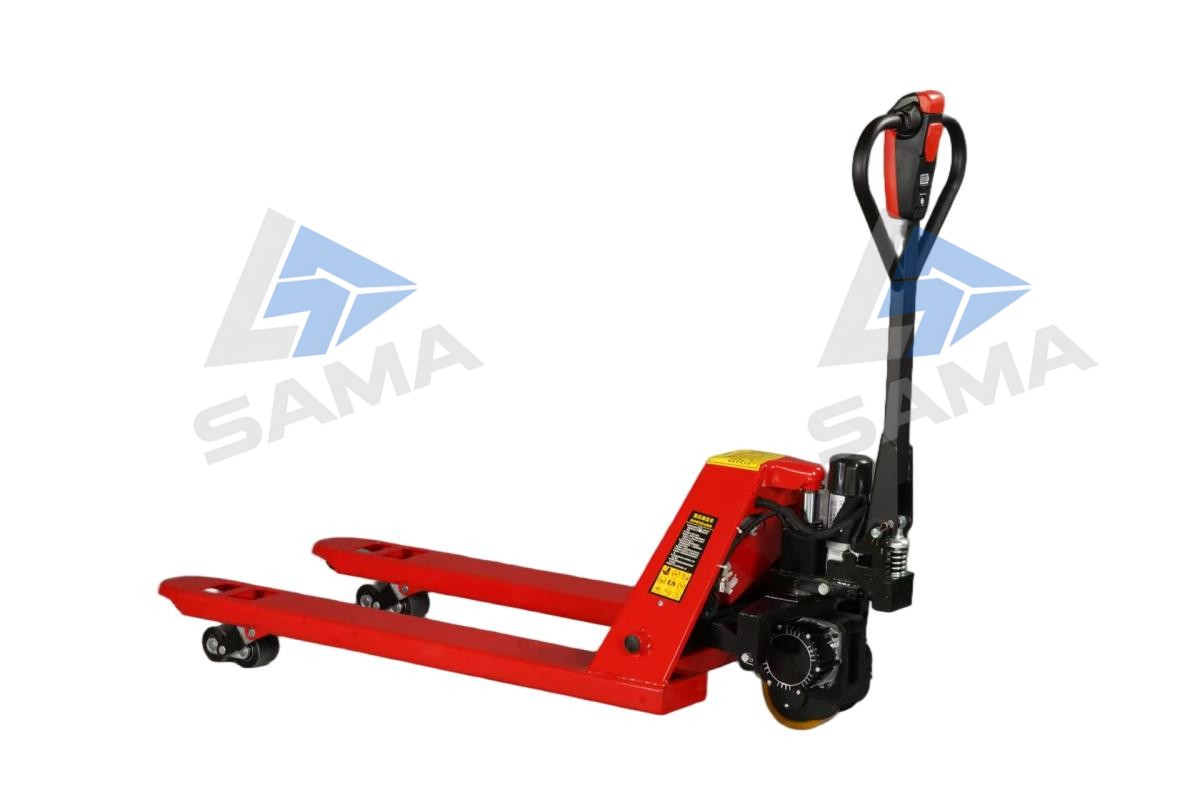

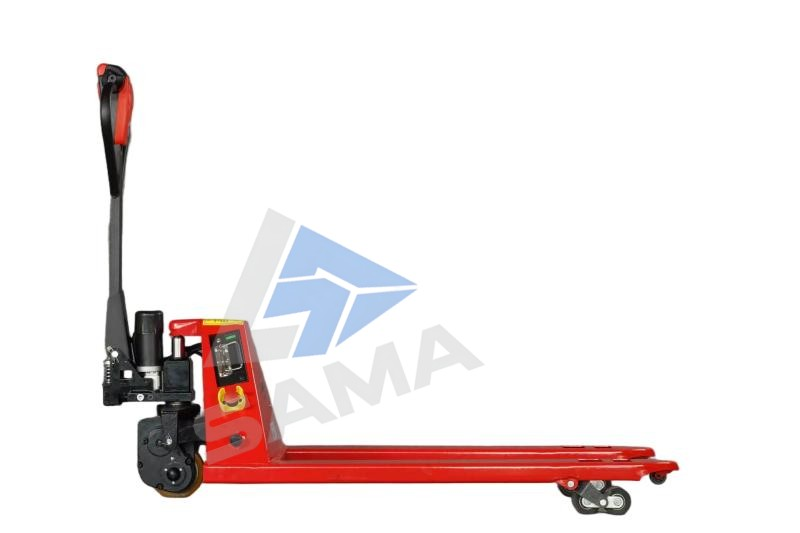

Lithium-ion pallet trucks
| Rated Load Capacity | 2000KG |
| Load Center Distance | 500 |
| Minimum Forklift Height | 80 |
| Front Wheel | 160X55 |
| Rear Wheel | φ80/70 |
| Maximum Lift Height | 190 |
| Maximum/Minimum Height of Drive Unit Position | 770/1254 |
| Overall Length | 1714 |
| Fork Length | 1160 |
| Fork Dimensions | 160X1160 |
| Overall Fork Width | 550/685 |
| Full Charge Range | 210 minutes |
| Charging Time | 150 minutes |
| Turning Radius | 1515 |
| Operating Speed, Loaded/Unloaded | 5.3/5.8 |
| Battery Voltage, Lithium | 48V/15A |
| Battery Weight | 3.8KG |
| Weight (with Battery) | 106KG |
| Motor Power | 800W |
A lithium electric pallet truck (or lithium battery-powered pallet jack) is a motorized material handling tool that uses rechargeable lithium-ion technology to drive its lifting and movement functions. Designed as a highly efficient alternative to manual pump jacks or traditional lead-acid models, it dramatically reduces physical strain while maximising warehouse productivity.
Key Benefits over Traditional Models
Zero Memory Effect: You can partially charge the battery during short employee breaks (opportunity charging) without degrading its total life.
Rapid Charging: Achieves a 100% full charge in just 1 to 3 hours, compared to the 8 hours required for standard lead-acid batteries.
Extended Lifespan: Typical lithium-ion batteries survive up to 2,000–3,000 charging cycles, outlasting traditional options up to six times over.
Ultra-Compact Design: The high energy density of lithium allows for a much smaller chassis, delivering a tight turning radius perfect for narrow warehouse aisles or lorry loading.
Zero Maintenance: Eliminates the ongoing costs and hassle of water topping, battery cleaning, or acid handling.
Customisation Options: As a leading Construction Machinery & Warehouse Equipment Supplier, we offer OEM services
