Product Description

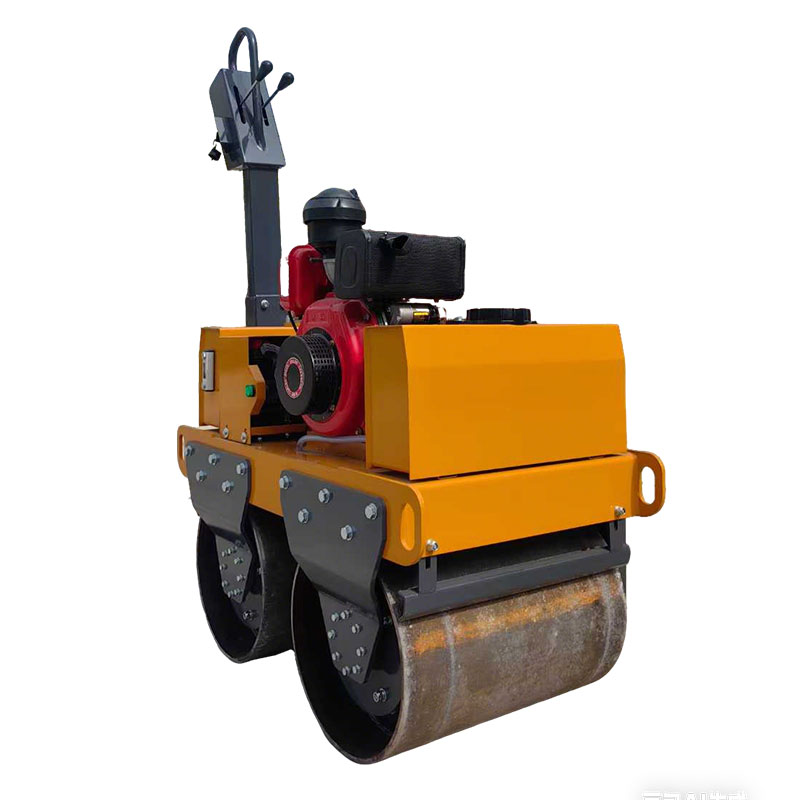

The MRD600H Professional Walk-Behind Double Drum Roller is a high-efficiency compaction solution engineered for versatility and precision in tight construction spaces. Driven by a premium Gasoline (Petrol) Engine (Honda GX270 or Loncin G270F), this tandem vibratory roller delivers a consistent and powerful 20kN exciting force, making it the perfect bridge between small plate compactors and large ride-on rollers.
Equipped with a two-way hydraulic system, the MRD600H offers smooth travel control and effortless maneuverability. The dual steel drums are designed for high-density compaction of both asphalt surfaces and granular soil sub-bases. Featuring a built-in 20L gravity-fed water sprinkling system, this machine ensures non-stick operation during hot-mix paving, providing a mirror-smooth finish. Its robust 540kg frame and reinforced handle make it an indispensable tool for municipal repairs, narrow utility trenches, and residential driveway projects.
Technical Parameters (Gasoline Configuration)
| Parameter | Specification (MRD600H) |
| Model | MRD600H |
| Operating Weight | 540 kg |
| Engine Type | Single cylinder, OHV, Air-cooled, 4-stroke |
| Engine Brand | Honda GX270 / Loncin G270F |
| Output Power | 6.7 kW (approx. 9 HP) |
| Walking Way | Two-way Hydraulic & Chain Drive |
| Walking Speed | 0 – 3.8 km/h |
| Exciting Force | 20 kN |
| Vibration Frequency | 70 Hz |
| Drum Size (Dia * Width) | 426 mm * 600 mm (x 2) |
| Water Tank Capacity | 20 L |
| Hydraulic Oil Capacity | 18 L |
| Climbing Ability | 30% |
| Static Linear Load | 45 N/cm |
| Packing Size | 1350 * 890 * 1170 mm |
Key Features
-
High-Torque Gasoline Performance: Outfitted with an industrial-grade gasoline engine for reliable starting, easy maintenance, and reduced noise compared to diesel units.
-
Dual-Drum Vibratory Power: Synchronized high-frequency vibration (70Hz) ensures maximum structural density and a level surface in fewer passes.
-
Advanced Two-Way Hydraulic Drive: Features a precision hydraulic system for smooth forward and reverse travel, allowing for pinpoint accuracy in restricted areas.
-
20kN Powerful Compaction Force: Delivers deep-reaching impact energy effectively eliminating air pockets in sub-grade soil and asphalt.
-
Integrated Gravity Sprinkling System: Large-capacity 20L water tank with a full-width spray bar to prevent asphalt adhesion and control dust.
-
Ergonomic Control Handle: Includes intuitive travel and vibration controls on a vibration-dampened handle to reduce operator fatigue.
-
Compact Professional Profile: Optimized width of 600mm allows for easy access to narrow trenches, sidewalks, and around structural columns.
Applications
-
Trench & Utility Work: Compacting backfill around pipelines, sewer systems, and electrical conduits.
-
Municipal Road Repair: Ideal for high-speed asphalt patching, pothole maintenance, and road shoulder construction.
-
Residential Infrastructure: Perfect for stabilizing ground and paving private driveways, patios, and walkways.
-
Landscaping & Parks: Used to level and compact soil for sports tracks, garden paths, and playground bases.
-
Foundation Sub-base Prep: Essential for compacting granular material before pouring concrete slabs in confined indoor or outdoor sites.
