Product Description

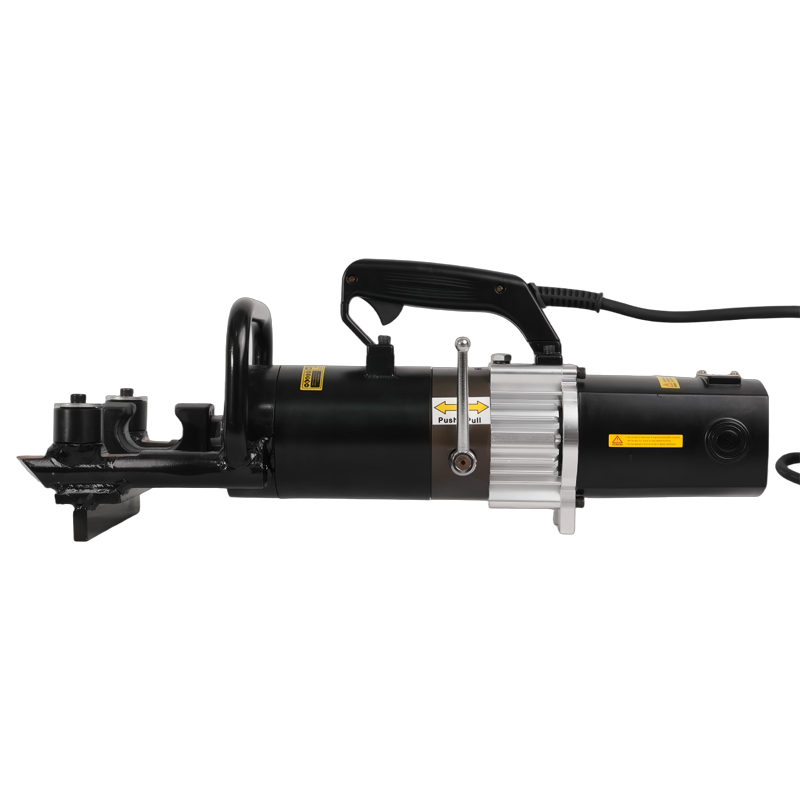

Dominate the most demanding reinforcement tasks with the MRE-32 Professional Handheld Rebar Bender. Engineered for elite industrial performance, this high-capacity powerhouse is specifically designed to bend massive steel bars ranging from 6mm to 32mm in diameter. Driven by an ultra-powerful 1600W high-torque motor, it delivers the immense hydraulic force needed to complete a precise 90-degree bend in just 5 to 6 seconds, significantly outperforming manual methods and smaller electric units.
The MRE-32 features an advanced hydraulic push-pull piston system, ensuring clean and accurate angles without compromising the structural integrity of the high-tensile steel. Despite its heavy-duty output, the machine maintains an ergonomic profile with a balanced dual-handle design for stable operation on-site. Built with a reinforced forged metal head and industrial-grade internals, the MRE-32 is the definitive labor-saving solution for professional contractors working on bridge piers, dam foundations, railway projects, and deep foundation engineering.
Technical Parameters
| Item | Specification |
| Model | MRE-32 |
| Voltage | 220V / 110V (Dual Options Available) |
| Wattage (Power) | 1600 W |
| Bending Range | 6 mm – 32 mm |
| Bending Speed | 5.0 s – 6.0 s |
| Bending Angle | 0° – 90° |
| Net Weight | 24.0 kg |
| Gross Weight | 34.0 kg |
| Machine Size | 610 × 270 × 260 mm |
| Packing Size | 725 × 360 × 295 mm |
Applications
-
Mega Infrastructure: The primary choice for bending the thickest reinforcement bars used in bridge piers, dams, and highway abutments.
-
High-Rise Structural Engineering: Ideal for onsite processing of large-diameter vertical reinforcement bars for massive columns and thick floor slabs.
-
Railway & Tunnel Projects: Essential for preparing heavy-duty steel grids and cages in restricted underground or remote environments.
-
Precast Concrete Production: Speeds up the fabrication of custom-bent high-strength steel components in industrial settings.
-
Heavy Demolition & Renovation: Used by specialized structural crews to accurately reposition existing heavy-duty steel bars during major upgrades.
Key Features
-
Flagship 1600W Industrial Motor: Outfitted with a premium pure-copper motor designed for maximum torque and efficient heat dissipation during continuous heavy operation.
-
Elite 32mm Bending Capacity: Specifically reinforced hydraulic cylinder and head assembly designed to handle the absolute maximum range for handheld rebar tools.
-
Precision Push-Pull Lever: Features an integrated control lever for intuitive and smooth operation during the bending cycle.
-
Clean & Safe Cold-Bending: Operates without sparks, open flames, or hazardous dust, ensuring 100% compliance with strict fire and safety regulations.
-
Reinforced Forged Metal Head: Constructed with high-impact, high-strength forged steel designed for thousands of industrial-grade bends without failure.
-
Professional Dual-Grip Control: The wide rear handle and industrial-grade side grip offer superior leverage and maximum stability when bending thick 32mm rebar.
-
Dual-Voltage Versatility: Available in both 220V and 110V configurations to meet the power requirements of international construction sites.
