Product Description

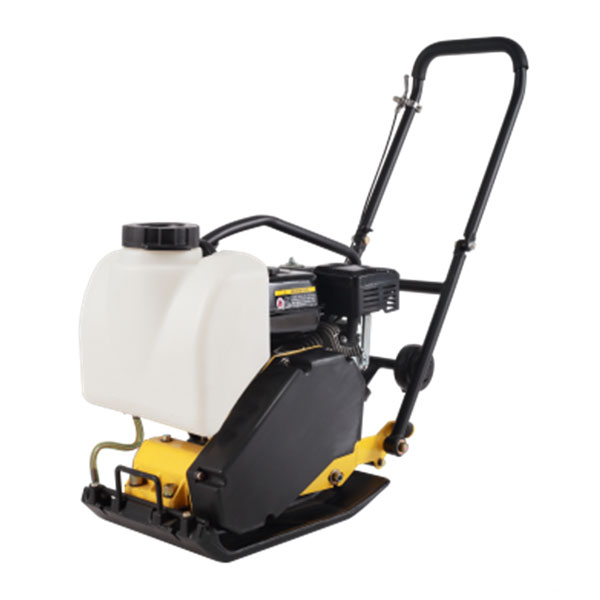

The Industrial Vibratory Plate Compactor is a heavy-duty engineered solution designed for professional contractors who demand superior compaction density and long-term reliability. Boasting a massive 18kN centrifugal force, this machine—widely known as a “power wacker”—effectively eliminates air pockets in sub-base materials to ensure a rock-solid foundation.
A standout feature of this model is the integrated large-capacity water tank, which provides a constant gravity-fed spray to the base plate. This is essential for asphalt paving to prevent hot mix from sticking to the plate and for dust suppression on dry job sites. Powered by world-class engines including Honda GX160 and Robin EX17, and featuring a heavy-duty ductile iron base, the TP100 delivers professional-grade results for driveways, road repairs, and industrial landscaping projects.
Applications
-
Asphalt Road Repair & Paving: The built-in water tank makes it perfect for patching potholes, finishing road shoulders, and compacting asphalt parking lots.
-
Foundation & Sub-base Stabilization: Ideal for compacting sand, gravel, and crushed stone before pouring concrete or laying pavers.
-
Driveway & Sidewalk Construction: Used to create a level and stable base for residential and commercial walkways.
-
Landscaping & Garden Design: Perfect for stabilizing earth for patios, retaining wall bases, and garden paths.
-
Utility Trenching: Highly effective for compacting backfill around pipelines and utility conduits in restricted areas.
Key Features
-
Integrated Water Tank System: Specifically designed for asphalt work to prevent sticking and provide effective dust control.
-
Powerful 18kN Centrifugal Force: Delivers intense vibratory energy for high-density compaction in fewer passes.
-
Multiple Premium Engine Options: Available with original Honda GX160, Robin, or Diesel engines for unmatched global reliability.
-
Professional Ductile Iron Base Plate: Wear-resistant and self-cleaning open base plate with curved edges for smooth maneuvering.
-
Built-in Transport Wheels: Features a convenient fold-down wheel kit for easy movement around the job site by a single operator.
-
Advanced Vibration Isolation: Professional-grade shock mounts isolate the handle from high-frequency vibration, significantly reducing operator fatigue.
-
Heavy-Duty Engine Guard: A reinforced steel cage protects the engine from impact and provides a secure central lifting point.
Technical Specifications
| Parameter / Model | TP100-1 | TP100-2 | TP100-3 | TP100-3Y | TP100-4 | TP100-5 |
| Engine Type | Chinese Diesel 170 | Chinese Petrol 170 | Petrol, Robin EX17 | Petrol, Robin EY20 | Petrol, Honda GX160 | B&S I/C 1062 |
| Power kW (hp) | 3.1 (4.2) | 4.8 (6.5) | 4.2 (5.7) | 3.7 (5.0) | 4.0 (5.5) | 3.7 (5.0) |
| Weight kg (lbs) | 100 (243) | 101 (223) | 100 (220) | 100 (220) | 100 (220) | 100 (220) |
| Frequency (VPM) | 5400 (90Hz) | 5400 (90Hz) | 5400 (90Hz) | 5400 (90Hz) | 5400 (90Hz) | 5400 (90Hz) |
| Centrifugal Force | 18 kN | 18 kN | 18 kN | 18 kN | 18 kN | 18 kN |
| Travel Speed | 20 m/min (66) | 20 m/min (66) | 20 m/min (66) | 20 m/min (66) | 20 m/min (66) | 20 m/min (66) |
| Plate Size cm (in) | 55×45 (22×18) | 55×45 (22×18) | 55×45 (22×18) | 55×45 (22×18) | 55×45 (22×18) | 55×45 (22×18) |
| Dimension (cm) | 80x45x59 | 80x45x59 | 80x45x59 | 80x45x59 | 80x45x59 | 80x45x59 |
