Technical Specifications
1. Single Scissor Series (Standard Lift)
| Model | Load Capacity | Max Lift Height | Min Height | Table Size | Self Weight |
| RS-42 | 150 kg | 720 mm | 230 mm | 450 x 700 mm | 42 kg |
| RS-50 | 150 kg | 1260 mm | 250 mm | 450 x 700 mm | 50 kg |
| RS-45 | 200 kg | 720 mm | 230 mm | 450 x 700 mm | 45 kg |
| RS-57 | 200 kg | 1260 mm | 280 mm | 450 x 700 mm | 57 kg |
| RS-75 | 350 kg | 900 mm | 280 mm | 500 x 800 mm | 75 kg |
| RS-100 | 350 kg | 1300 mm | 370 mm | 500 x 920 mm | 100 kg |
| RS-110 | 350 kg | 1500 mm | 370 mm | 500 x 920 mm | 110 kg |
2. Double Scissors Series (High Lift)
| Model | Load Capacity | Max Lift Height | Min Height | Table Size | Self Weight |
| RD-80 | 500 kg | 900 mm | 280 mm | 500 x 800 mm | 80 kg |
| RD-113 | 500 kg | 1300 mm | 370 mm | 500 x 920 mm | 113 kg |
| RD-117 | 500 kg | 1500 mm | 370 mm | 500 x 920 mm | 117 kg |
| RD-110 | 800 kg | 1000 mm | 420 mm | 500 x 1000 mm | 110 kg |
| RD-150 | 800 kg | 1500 mm | 450 mm | 600 x 1200 mm | 150 kg |
| RD-120 | 1000 kg | 1000 mm | 420 mm | 500 x 1000 mm | 120 kg |
| RD-226 | 1000 kg | 1700 mm | 500 mm | 600 x 1200 mm | 226 kg |
Product Description

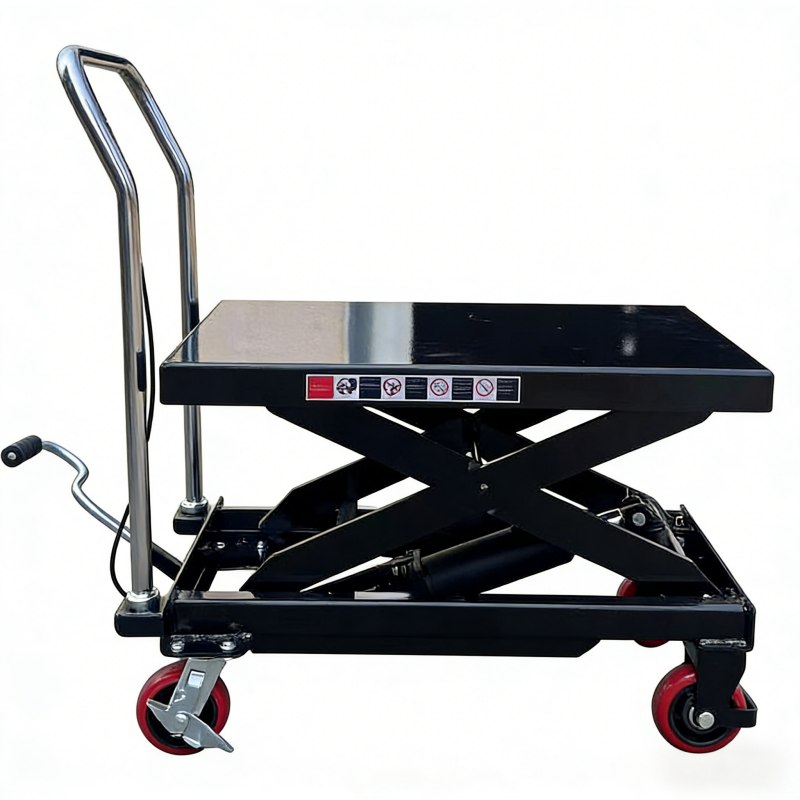

Streamline your workflow and protect your workforce with our Professional Hydraulic Scissor Lift Table Carts. Engineered for precision and durability, these mobile elevating platforms are designed to handle loads ranging from 150kg to a massive 1000kg. Whether you need the compact reach of a Single Scissor (RS Series) or the extended vertical height of a Double Scissor (RD Series), our lift tables provide a stable and ergonomic solution for transporting and positioning heavy items.
Constructed from high-tensile reinforced steel with a premium powder-coated finish, these carts feature a high-efficiency hydraulic foot pump for effortless lifting and a hand-operated release for controlled lowering. Equipped with heavy-duty casters and safety brakes, these lift tables bridge the gap between floor-level storage and high-level assembly lines, making them an indispensable asset for any modern logistics or manufacturing facility.
Applications
-
Warehouse Logistics: Effortless loading and unloading of inventory from pallet racks and delivery vehicles.
-
Manufacturing & Assembly: Positioning heavy components at the perfect ergonomic height for workers on assembly lines.
-
Auto Repair & Garages: Ideal for lifting engines, transmissions, and heavy equipment parts during maintenance.
-
Retail & Stockrooms: Safely transporting bulk goods and stacking heavy items on high-level display shelves.
-
Offices & Libraries: Moving large quantities of documents, books, or office machinery with minimal physical strain.
Key Features
-
Wide Capacity Range: Choose from multiple models supporting weight capacities of 150kg, 200kg, 350kg, 500kg, 800kg, and 1000kg.
-
High-Efficiency Hydraulic Pump: Features a reliable foot-pedal pump system for smooth, labor-saving vertical movement.
-
Precision Lowering Control: Hand-operated lever allows for gradual and safe lowering of the platform even under maximum load.
-
Durable Steel Construction: Built with heavy-duty industrial steel for long-term structural integrity and resistance to wear.
-
Superior Maneuverability: Equipped with high-quality polyurethane (PU) wheels, including two swiveling casters with safety locking brakes.
-
Ergonomic Design: Chrome-plated or powder-coated handles are designed to reduce operator fatigue during transport.
-
Safety Integrated: Built-in safety bypass valve prevents overloading and ensures operator protection during operation.
