Model	DE1516	DE1520	DE1525	DE1530	DE2016	DE2020	DE2025	DE2030
Load Capacity (TON)	1.5				2
Lifting Height (MM)	1600	2000	2500	3000	1600	2000	2500	3000
Load Center Distanc(MM)	600
Wheel Material	PU
Load Wheel Dimensions（MM)	φ160*55mm
Steering Wheel Dimensions（MM)	φ80*70mm
Overall Height（MM)	2000
Min Fork Height（MM)	85
Overall Length（MM)	1850
Overall Width（MM)	825
Fork Size（MM)	1150*160*60
Drive Motor Power(KW)	0.8				1
Lifting Power(KW)	2.2
Voltage (V)	48
Battery (Ah)	EVF-32Ah
Weight（KG)	520	560	580	600	570	620	645	660

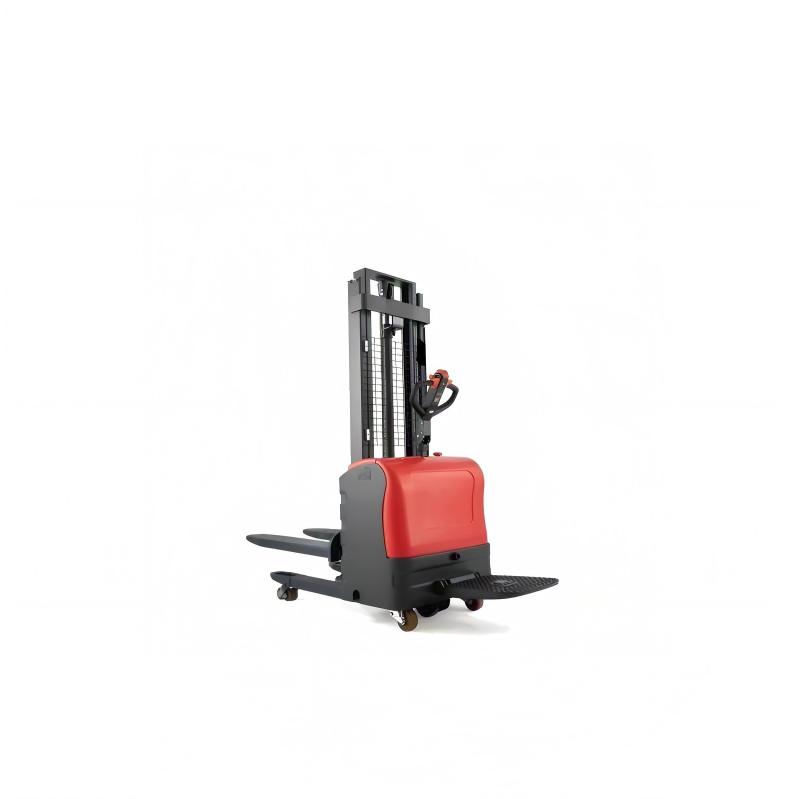

Product Name: Stand-On Full Electric Stacker with Double Lifting

Product Description:

The Stand-On Full Electric Stacker with Double Lifting is a high-performance material handling solution designed for efficient lifting, stacking, and transporting of palletized goods in warehouses, distribution centers, manufacturing facilities, and retail stockrooms. Unlike pedestrian stackers that require the operator to walk alongside, this stand-on model allows the operator to ride on the platform, reducing fatigue and increasing productivity during high-frequency, multi-shift operations.

The “double lifting” feature refers to a two-stage or telescopic mast design that provides extended lift height while maintaining a low collapsed mast height – allowing the stacker to pass through standard doorways and work inside containers or trailers, then reach high stacking positions up to 3000mm–4500mm (10–15 feet) or more.

Key Features & Benefits:

• Stand-On Ride-On Design – The operator rides on a spacious, anti-slip platform with side rails and an ergonomic control handle. This reduces walking fatigue, increases shift-long productivity, and allows faster travel between picking locations.

• Double Lifting (Two-Stage Mast) – The telescopic mast features two or three lifting stages, providing high lift capacity (typically 1000kg–2000kg / 2200–4400 lbs) with a low collapsed mast height (often under 2000mm / 78 inches). This combination allows the stacker to work in low-clearance areas (trailers, mezzanines, ground-level aisles) while still reaching top-tier racking.

• Full Electric Drive & Lifting – Both traction and lifting functions are fully electric. The operator controls travel speed, steering, lift, lower, and tilt via intuitive lever or thumb controls. No manual pumping or pushing required.

• Powerful Battery System – Industrial-grade lead-acid or maintenance-free lithium-ion battery provides all-day operation on a single charge. Easy battery access for watering (lead-acid) or opportunity charging (lithium).

• High Maneuverability – Despite the ride-on design, the stacker features a compact turning radius, often under 1500mm (60 inches). Rear-wheel drive and precision steering allow easy navigation through narrow aisles, tight corners, and crowded loading docks.

• Smooth & Safe Operation – Electronic speed control, electromagnetic braking, and progressive lift/lower valves ensure smooth acceleration, stops, and load handling. Lowering speed is adjustable to prevent load shock.

• Durable Mast & Carriage – Heavy-duty C-section or I-section mast with roller bearing guides for stable, wobble-free lifting. Fork carriage often includes adjustable fork arms and optional sideshift for precise positioning.

Typical Applications:

• Stacking pallets onto medium to high-bay racking (up to 4.5 meters / 15 feet)

• Loading and unloading delivery trucks and shipping containers (low overhead clearance)

• Order picking and replenishment in narrow-aisle warehouses

• Work-in-progress (WIP) handling along assembly lines

• Retail backroom stocking and mezzanine access

• Cold storage and freezer environments (specialized components available)

• We accept OEM, custom logos, and custom colours.

  For bulk orders, please get in touch with us for wholesale prices and fast delivery. It is a custom-made manual pallet truck.

  Please get in touch with us to discuss the specific customisation details.

  Email: info@samaquip.com   Phone: +86 152 3222 5178

  • Customisation Options: As a leading Construction Machinery & Warehouse Equipment Supplier, we offer OEM services, including custom fork lengths, logos, and colours to match your brand.
